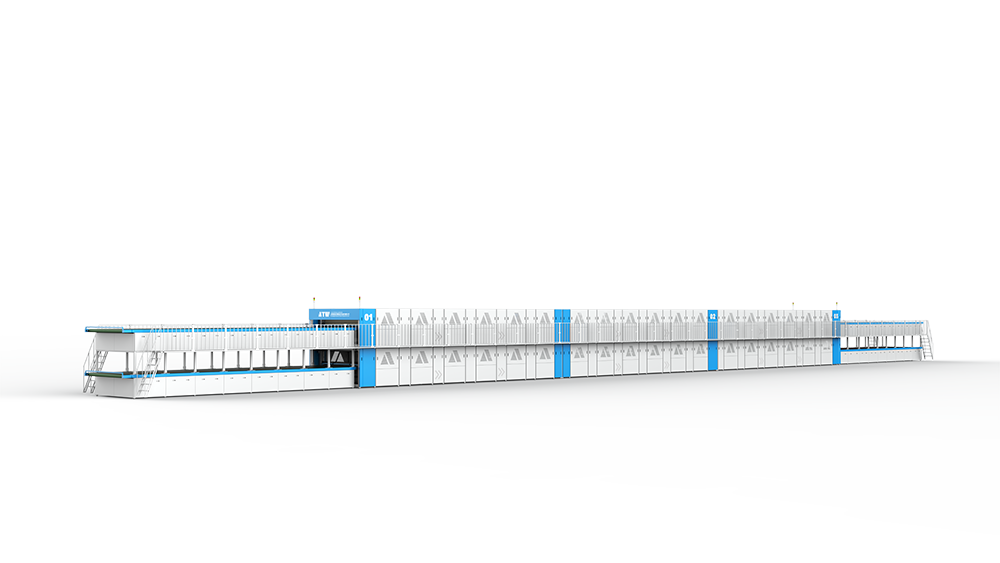

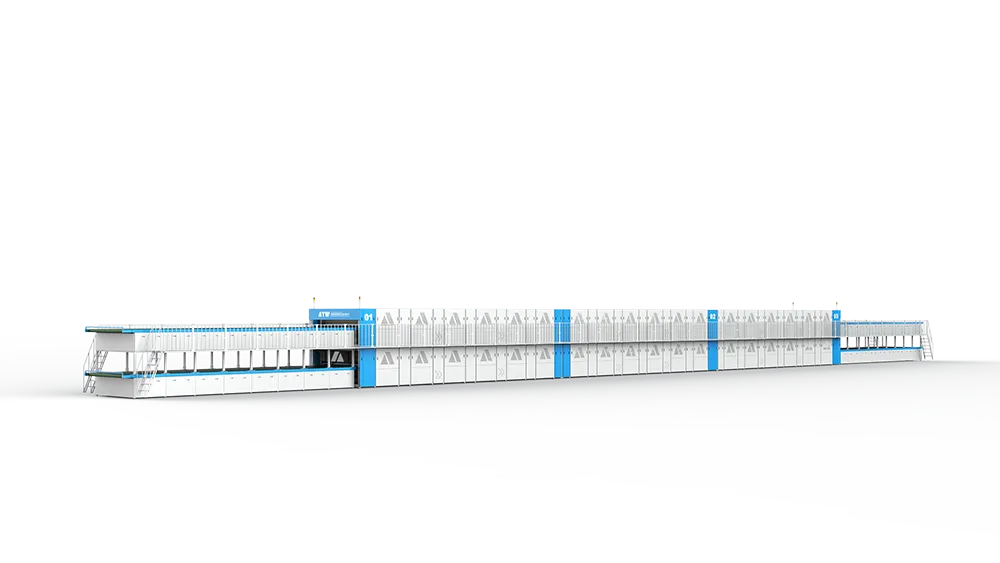

Automatic Solar Module Laminator
Photovoltaic module laminatoris the core equipment in the production process of photovoltaic modules, its main role is to synthesize glass, EVA, battery string, EVA, photovoltaic module backplane through vacuum hot pressing.The laminating process mainly includes three stages: laminating, curing and cooling.
-
2787 double layer triple stage/double layer double stage
Capacity:256-340MW/year
-
27115 double layer triple stage/double layer double stage
Capacity:340-500MW/year
All in one bussing solution
The PV Module Laminator is a core piece of equipment in the PV production line, consisting of a heating system (heating plate + temperature sensor + high-precision temperature control module), vacuum system (vacuum pump + pneumatic butterfly valve), cover lift system, conveyor system, and control system. It is designed for laminating glass, encapsulant film, string, backsheet, and other materials together. The laminating quality directly affects the reliability and lifespan of the PV module.
The equipment boasts strong compatibility and can be widely applied to the manufacturing of TOPCon modules, low-temperature process modules, perovskite and tandem modules. Its precise design contributes to satisfaction of stringent requirements such as temperature accuracy of ±1°C, heating plate uniformity of ±1.5°C, and a component thickness variation of less than 0.3mm.
Compared with conventional models on the market, the ATW Zhiyuan multi-layer laminator stands out with a 33% increase in production efficiency, a 32% reduction in energy consumption costs, and a 50% saving in floor space. It is deeply adapted to new module processes, helping PV companies significantly reduce production and operating costs.
The equipment boasts strong compatibility and can be widely applied to the manufacturing of TOPCon modules, low-temperature process modules, perovskite and tandem modules. Its precise design contributes to satisfaction of stringent requirements such as temperature accuracy of ±1°C, heating plate uniformity of ±1.5°C, and a component thickness variation of less than 0.3mm.
Compared with conventional models on the market, the ATW Zhiyuan multi-layer laminator stands out with a 33% increase in production efficiency, a 32% reduction in energy consumption costs, and a 50% saving in floor space. It is deeply adapted to new module processes, helping PV companies significantly reduce production and operating costs.
-
Convenient Maintenance and Upkeep -
Better Temperature Uniformity -
Designed with One in Operation and One Standby -
Excellent thermal insulation design
