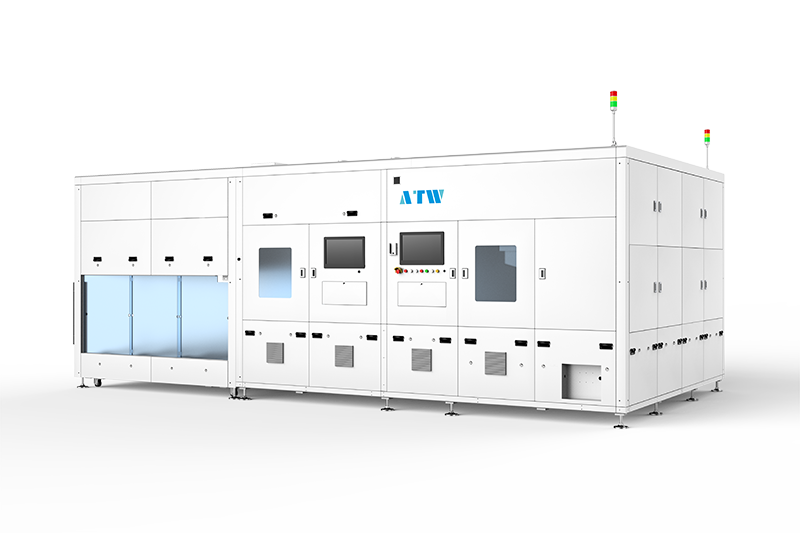

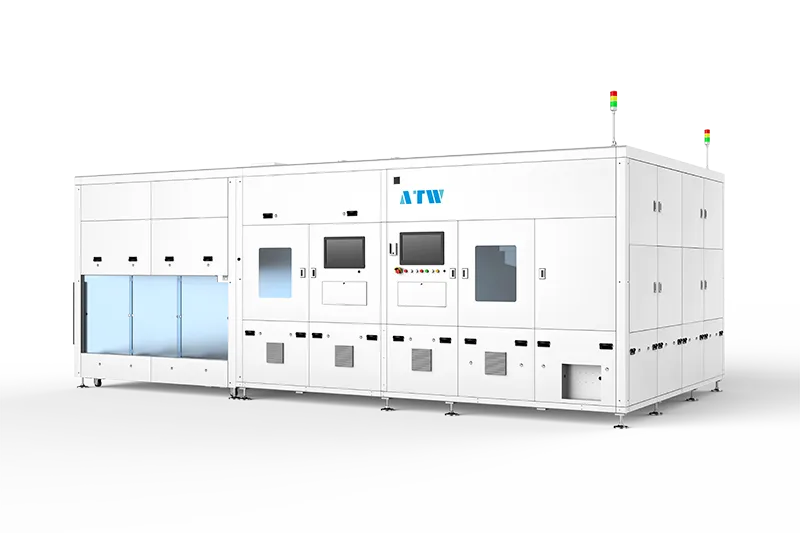

Half-cut Solar Cell UV Ablation System

Photovoltaic Products

D632D Half-cut Solar Cell UV Ablation System is mainly designed for the laser ablation process of half-cut XBC cells. It leverages ultra-violet and green picosecond lasers to ablate the patterns on BSG/PSG&n-poly/a-Si:H film, which, when working in conjunction with subsequent wet process, achieves p-/n- region isolation on the back.

P1 capacity

≥9600pcs/h@210*105
P2 capacity

≥7200pcs/h@210*105
Alignment accuracy

≤10um

Patterned laser of excellent accuracy and great stability

Recognized by customers for its great stability, excellent alignment accuracy, minimized heat affected zone, and high-efficiency dust removal

High stability

Highly stabilized directional optical system.
High uniformity

High-uniformity shaped light spot; support spot size adjustment, without the need to change the DOE.
High speed

Ultra high-speed galvanometer scanning system.
High precision

High-precision positioning and alignment.
High-efficiency dust removal

High-efficiency dust removal system to minimize the impact of dust on processes and components.

≥9600pcs/h@210*105

≥7200pcs/h@210*105

≤10um
